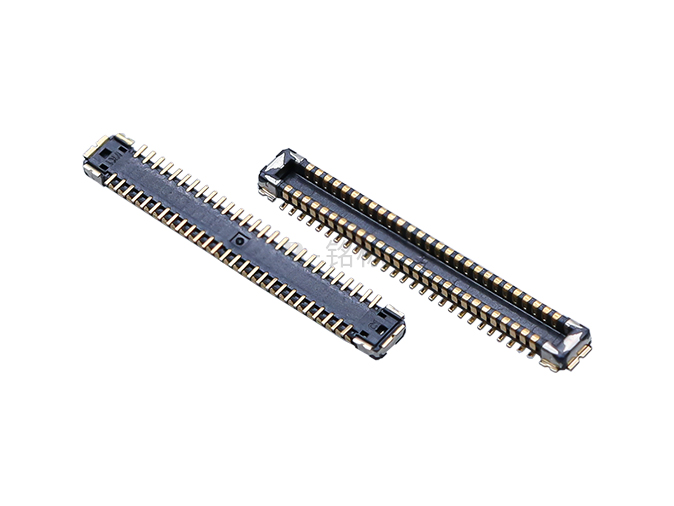

MIB-008M054 11.361.80.63mm

品牌：億彩科技

型号：MIB-008M054

规格：11.36*1.8*0.63mm

包装：10000

毛边最大0.03mm，厚0.05mm;端子接地片共面度在0.05mm以内,正位度0.02mm以内;

* 声明：有关于产品的规格、参数、寿命、工作温度、手感、防水等级等数据，只代表億彩电子内部的测试结果，如需详细测试方式，请联系億彩业务人员。

2D图纸下载

3D下载

详细参数

SPECIFICATONS:

1. Plastic material: LCP E6808 UHF UL 94V-0 BLACK;
2. 0.03mm thick, 0.05mm thick;
3. The product should not have obvious shrinkage, burning, white, rubber, terminal glue and other problems;
4. Parts must meet RoHS requirements;
5. ▼ symbol QIP control size;
6. Die number (A, B, C...... );
7. 10 KPCS / disk;
8. No geometric center position of the product;
9. The joint level of terminal ground plate within 0.05mm, positive degree within 0.02mm;
10. Fine glue inlet at the bottom;

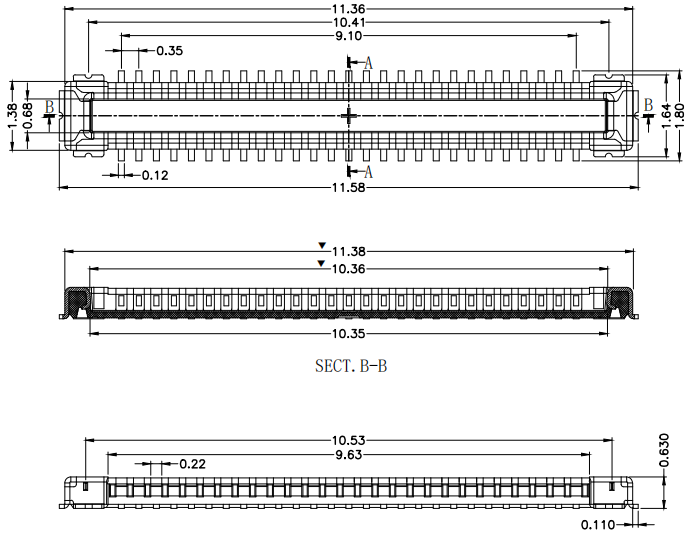

尺寸图
