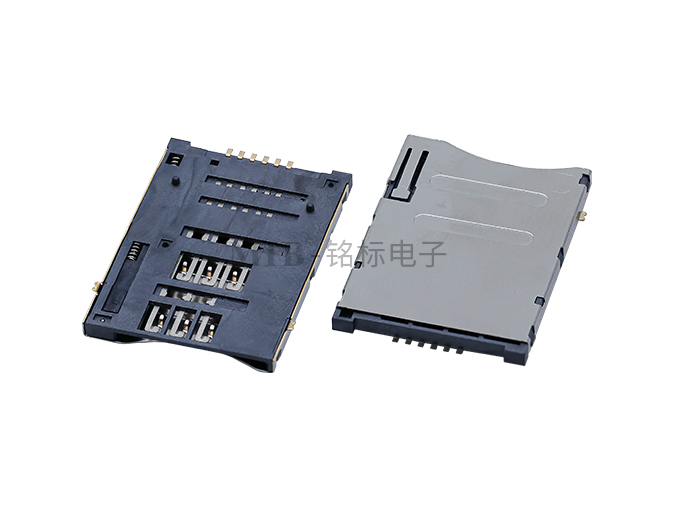

PUSH 6PIN 顺向SIM卡座 H=1.85 有柱14.0

品牌：億彩科技

型号：C-S206185A1-1

规格：26.85*19.20*1.85

包装：

* 声明：有关于产品的规格、参数、寿命、工作温度、手感、防水等级等数据，只代表億彩电子内部的测试结果，如需详细测试方式，请联系億彩业务人员。

详细参数

SPECIFICATIONS:

1.Electrical Characteristitics:

Current Rating;1.5A.

Withstanding Voltage:AC500V r.m.s.

Insulation Resistance:1000Megohms Minimum at

DC 500V

Contact Resistance:100Miliohms Maximum.

2.Mechanical Characteristics:

Mating Cyeles:3000 Insertions.

3.Environmwntal:

Operating Temperture:-25'To+70

4.Material:

1.Housing:HI-Temp plastic UL 94V-0 Rated.

2.Contact:Copper Alloy.

3.Shell:SUS.

5.Finish:

1u"Gold plated on conatct area,1u"Min Au

plated on

solder tails,Base Nickel 30u"Min

6.Packing:

Number of connectors:750Pcs/REEL

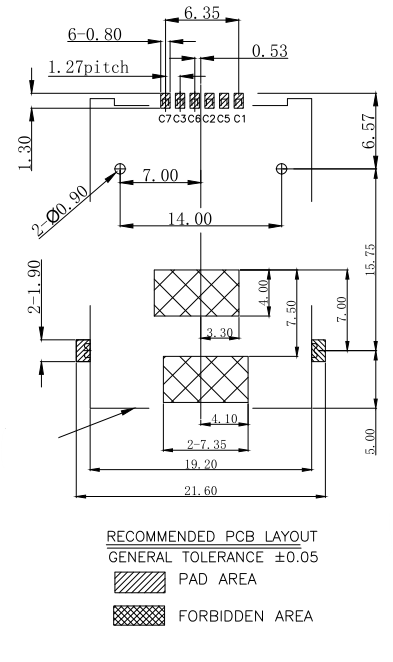

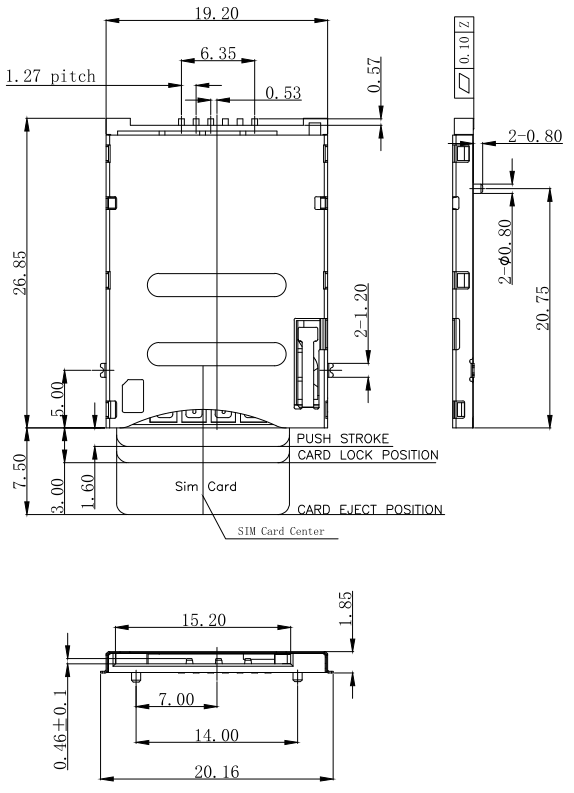

尺寸图
